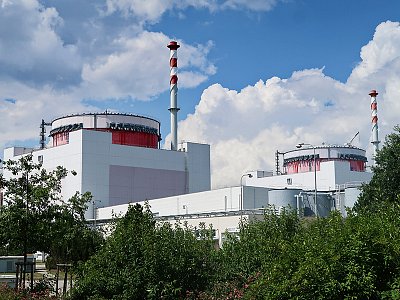

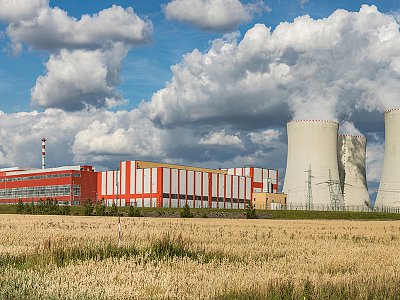

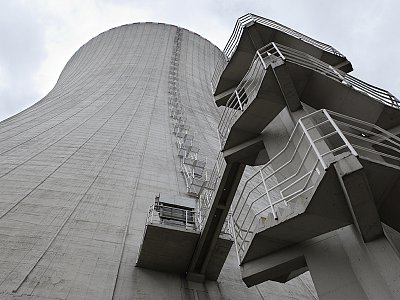

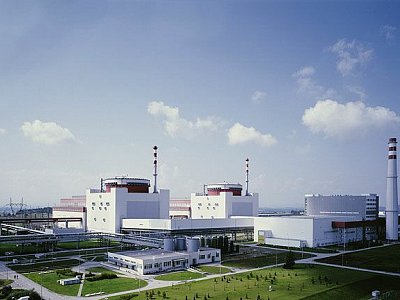

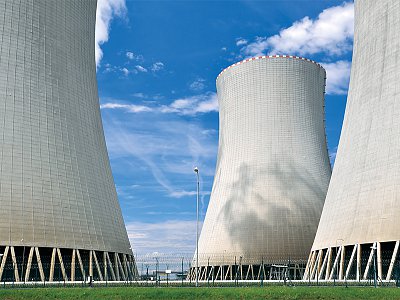

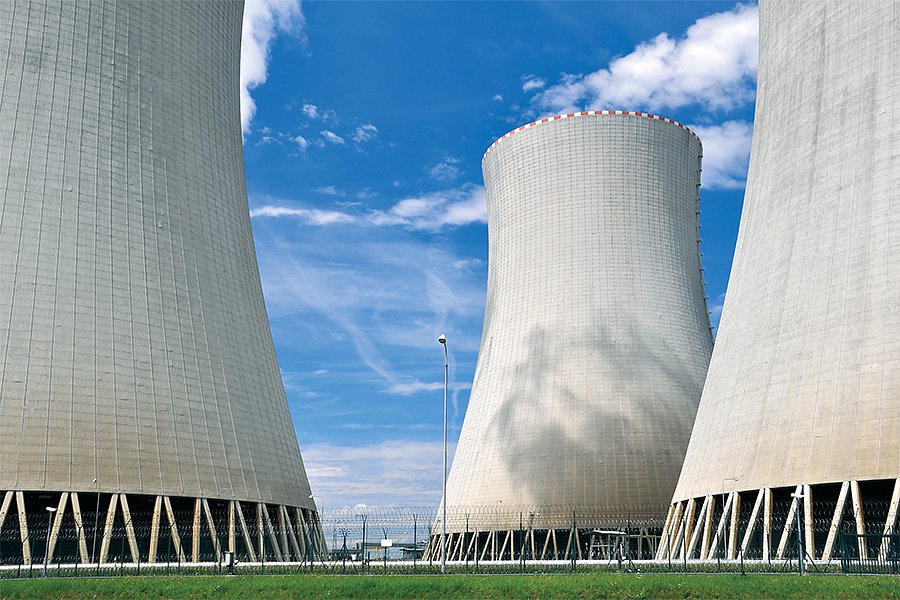

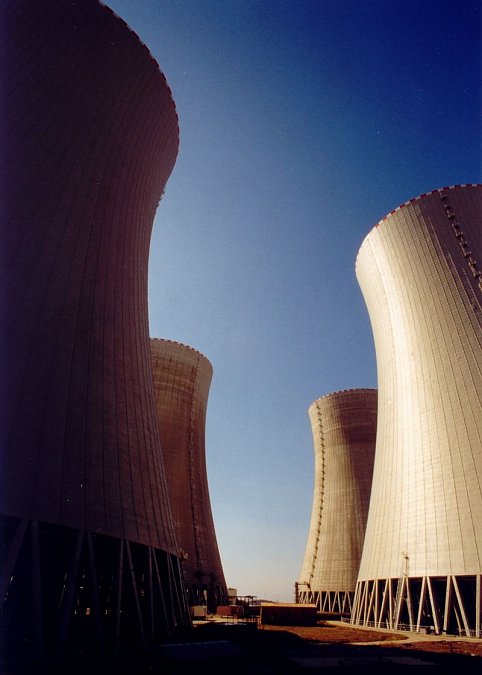

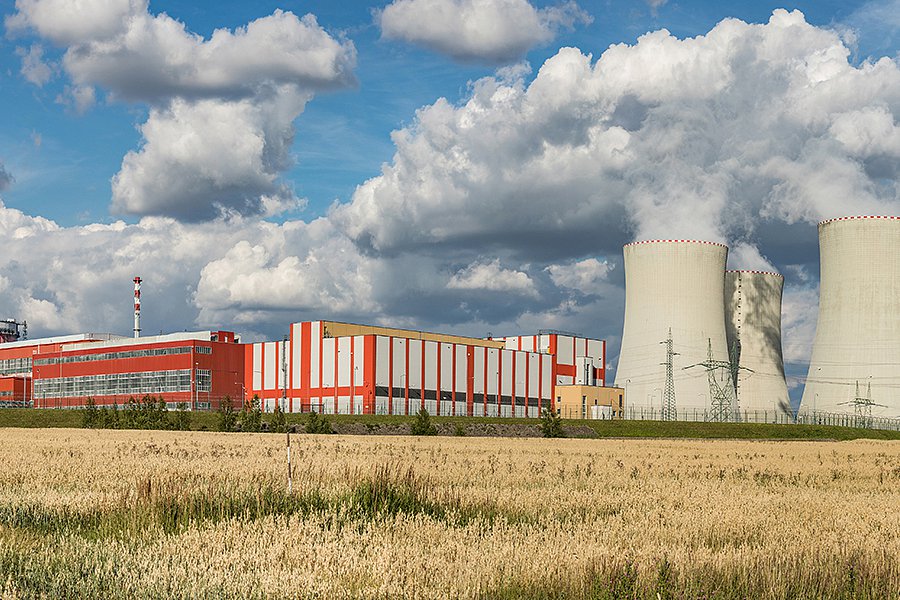

Temelín, Nuclear Power Plant

The Nuclear Power Plant consists of a complex of buildings and technological equipment which serves for the conversion of thermal energy into electric power, similarly as in classical power plants.


Location: Temelín
Investor: České energetické závody, a.s.
Realization: HOCHTIEF VSB division 1
Type: Construction of technological buildings
Construction time: 06/1986 - 07/2003

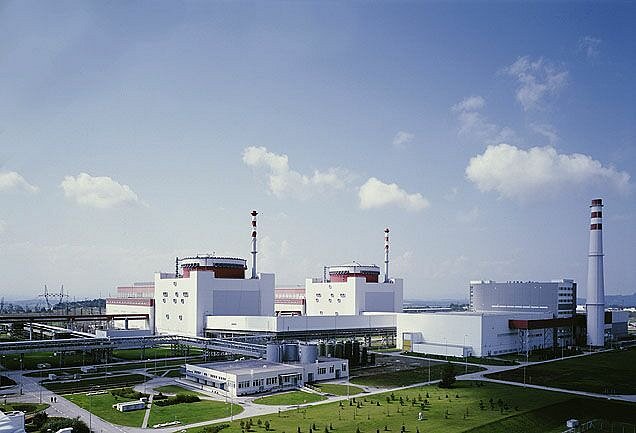

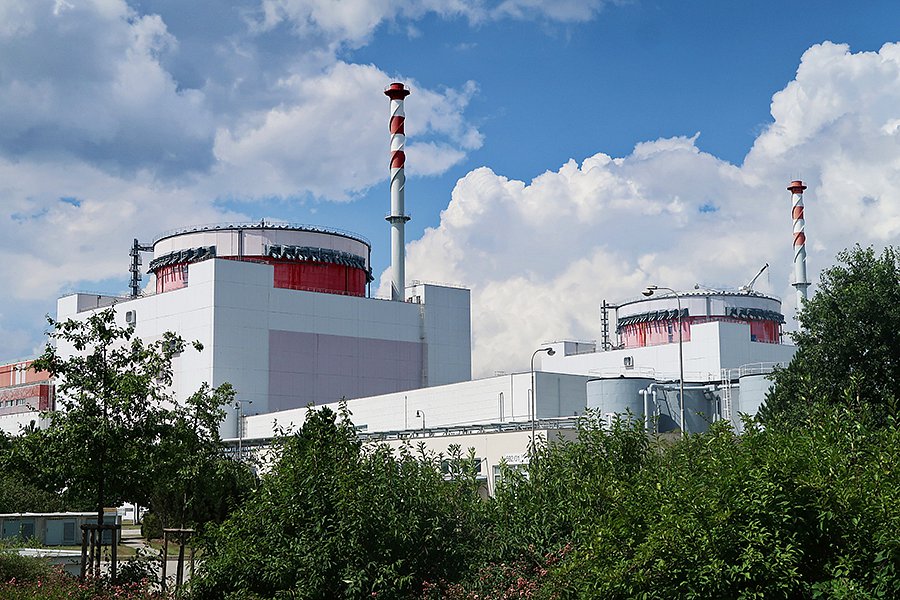

Main indicators: Two 1000 MW blocks
Buildings of main production block: 2 798 417 cu.m of built-up space
Office and operation buildings: 269 241 cu.m of built-up space
Sewerage, water, cable ducts: 73 490 m
Description: At the Temelín Nuclear Power Plant the heat source is a nuclear

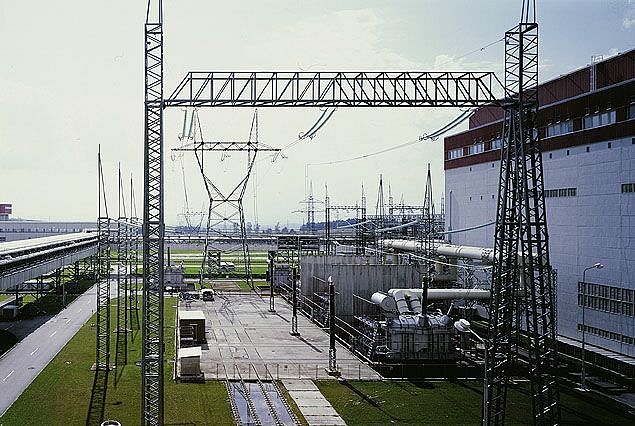

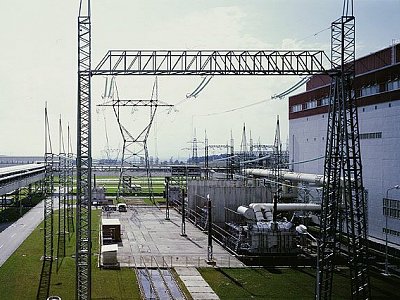

fission reaction in the active zone of two VVER 1000 reactors. The generated heat is conducted from the reactor to steam generators by a coolant in four loops. In the steam generator steam is generated in the inter-tube space of an evaporator. The steam is conducted to the turbo-set by steam conductors. The electric power output of the unit is conducted from turbo-alternators to unit transformers via the Temelín switching station and from there to the public network.

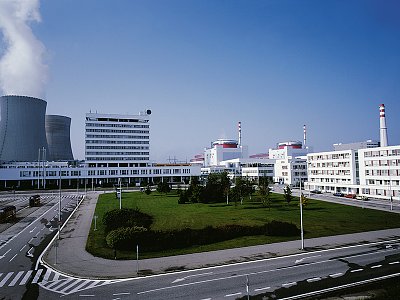

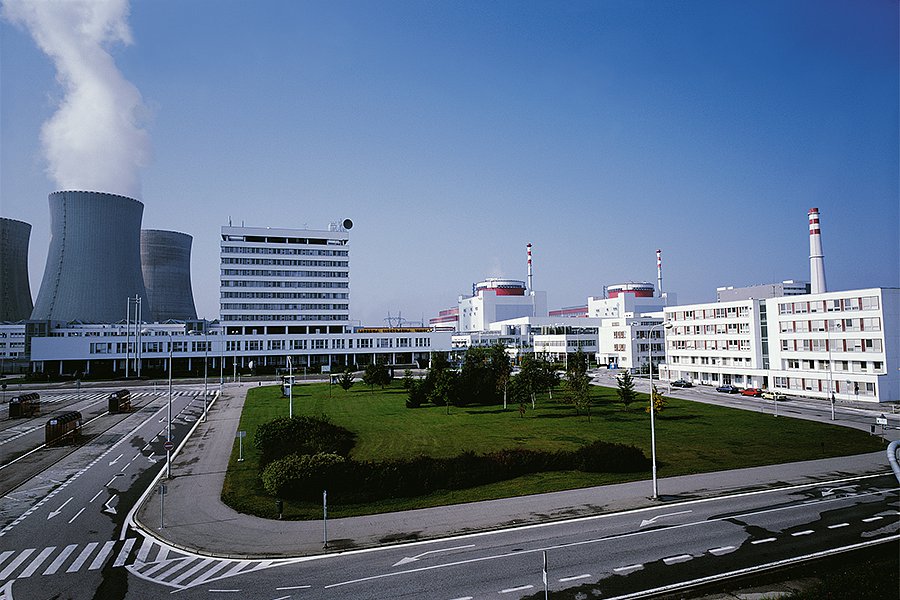

The technological design of the Nuclear Power Plant project includes, beside the two main production blocks, a complex of several hundred buildings and structures related to the operation of the plant. These units can be divided into the following groups:

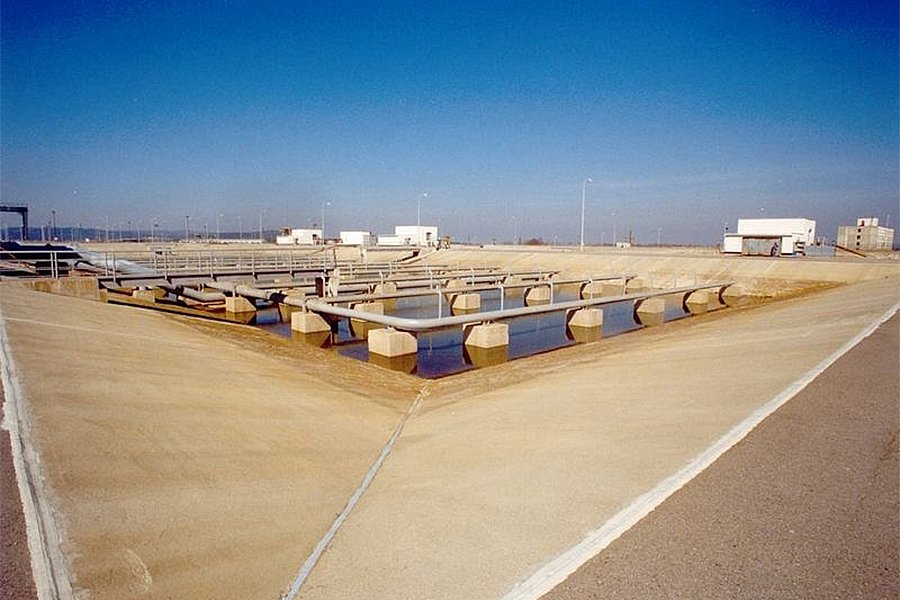

- media procurement and waste disposal
- distribution of public utilities
- workshops, warehouses and maintenance units
- office and welfare facilities

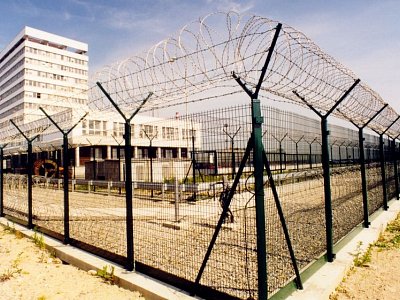

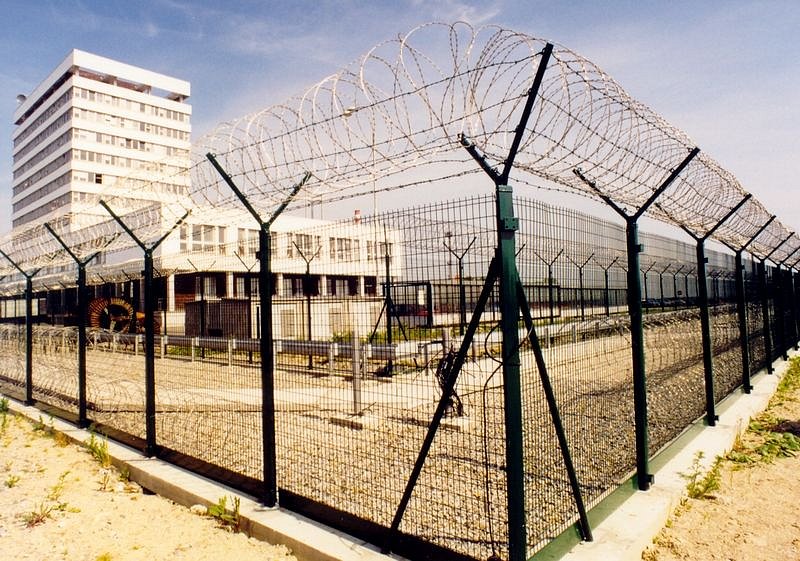

- operation safety and control units
